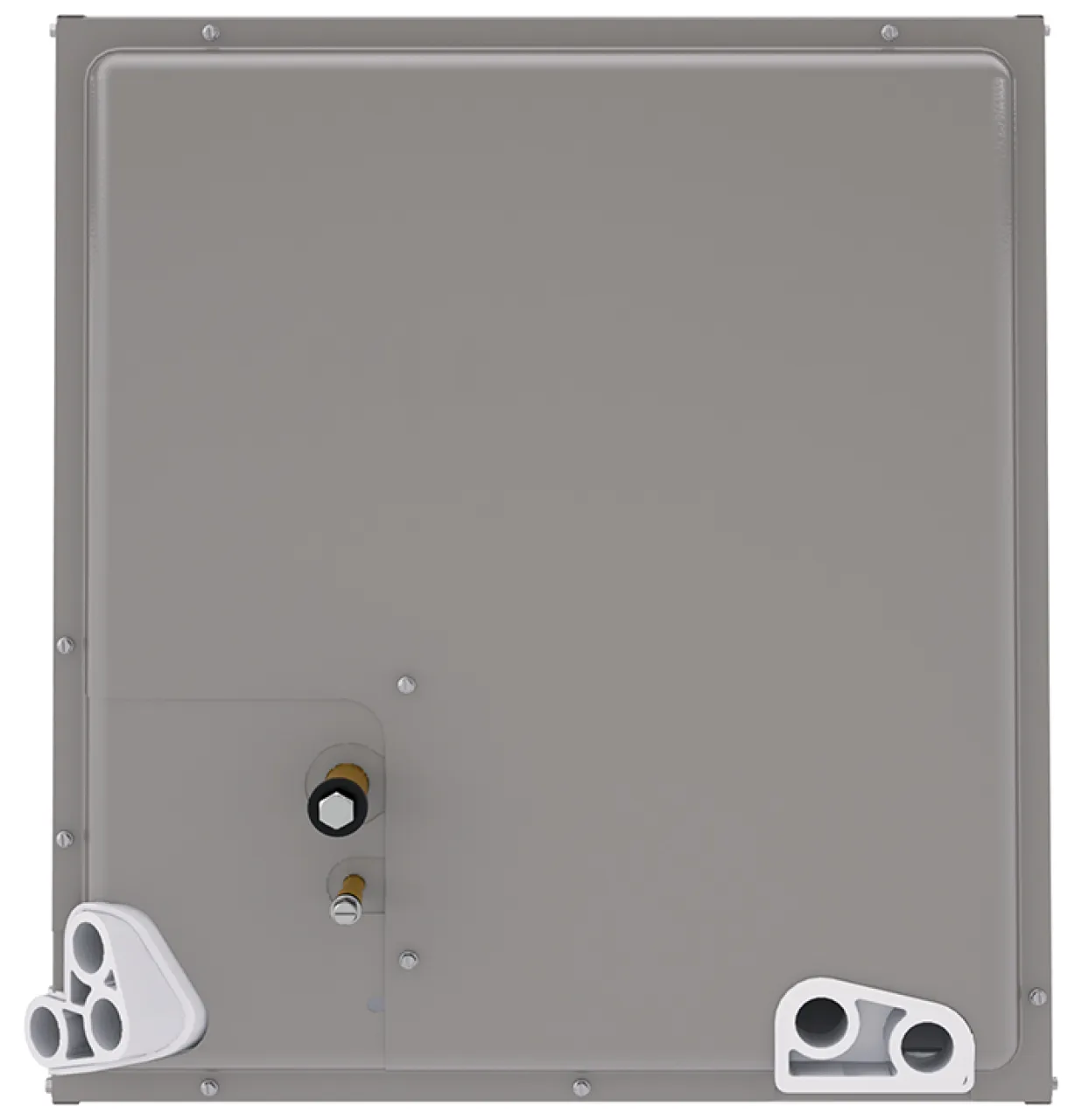

RCFZ Endeavor Line Cased Cooling Coil

Model # RCFZ6024STANMC
RCFZ Endeavor® Line Cased Cooling Coil
RCFZ Endeavor® Line Cased Cooling Coil
  • Home
  • Products
  • Residential
  • Heating & Cooling
  • Cooling Coils
  • RCFZ Endeavor Line Cooling Coils
  • RCFZ Endeavor® Line Cased Cooling Coil
    • RCFZ Endeavor Line Cased Cooling Coil
    Model # RCFZ6024STANMC
    Limited warranty may be conditional and require registration. Please refer to product warranty certificate for full details.
    • featuring Industry Standard R-410A
    • Refrigerant
    • Airflow Capacity
    • 600-1,900 CFM [283-897 L/s]

    Overview

    • Rheem® Indoor Furnace cased coils and replacement uncased coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW].
    • Constructed of aluminum fins bonded to internally grooved aluminum tubing.
    • Coils are tested at the factory with an extensive refrigerant leak check.
    • Coils have copper sweat refrigerant connections.
    • Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection.
    • Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only).
    • Approved for system application with variety of Rheem outdoor units.
    • Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material.
    • Compatible with Germicidal Light System (UV resistant)
    • Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right.
    • Unique drain pan design maximizes application flexibility and condensate removal.
    • N-Coil design maximizes performance and minimizes height required at installation.
    • Coils are AHRI certified for system application with a variety of Rheem outdoor units.

    Product Info

    Specifications
    Dimensions
    Product Depth (in.) 21.69"
    Product Height (in.) 32.5"
    Product Width (in.) 24.5"
    Details
    Fuel Type Electric
